What is ATM Card Reader, Types, Uses and How Does It Work

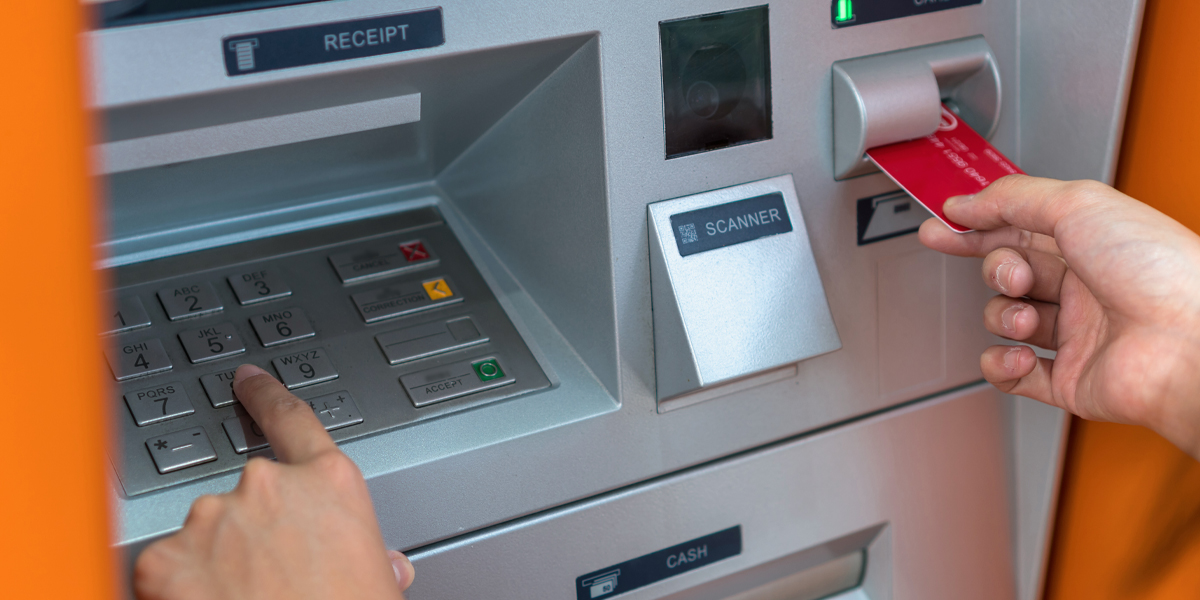

What is ATM Card Reader?

An ATM (Automated Teller Machine) card reader is a hardware component inside an ATM that reads information stored on a customer’s bank card. In India, most debit and credit cards issued by banks carry either a magnetic stripe, an EMV chip, or both. When you insert or tap your card at an ATM, the card reader captures the unique data encoded on the card such as the card number, expiry date, and cardholder information and sends it to the bank’s central server for verification.

In simple terms, the card reader acts like a translator: it “reads” what is stored on the physical card and converts it into digital data that the ATM’s computer system and the bank’s network can use. Without a reliable card reader, you would not be able to check your balance, withdraw cash, or carry out any other banking transaction at an ATM.

Types of ATM Card Reader

Magnetic Stripe Reader:

• How it looks: A small slot or track inside the ATM where you swipe your card.
• How it works: When you swipe your card through this slot, tiny magnetic particles on the back of the card pass over a magnetic head in the reader. That head interprets the magnetic patterns as digital information.

Common use in India: Older debit cards and some credit cards still rely on magnetic stripes. However, Regulatory guidelines from the Reserve Bank of India (RBI) encourage banks to move towards EMV chips, so magnetic stripes are gradually being phased out.

EMV Chip Reader (Contact Card Reader):

• How it looks: A bottom slot where you fully insert the card and leave it in place for a few seconds.
• How it works: EMV (Europay, MasterCard, and Visa) chips are tiny microprocessor chips embedded on the front of the card. When you insert your card, the reader makes physical contact with the chip and exchanges encrypted data to authenticate you and authorize the transaction.

Since 2013, RBI mandated that all new debit and credit cards issued in India must contain EMV chips. These chips greatly reduce fraud by generating a unique code for each transaction.

Contactless (NFC-Enabled) Reader:

• How it looks: A flat surface or illuminated area marked with a contactless symbol (four curved lines). You hold your card near this surface.
• How it works: Near Field Communication (NFC) allows your card to exchange data wirelessly with the ATM as long as it is within a few centimeters. The chip inside the card powers the communication and shares encrypted information without physical insertion.

Contactless payments are rising in urban areas in India, especially at merchant POS devices. However, in ATMs, fully contactless machines are still relatively rare. A few modern ATMs in metro cities support NFC for both cards and mobile wallets.

Hybrid Reader (Magnetic + Chip + Contactless):

• How it looks: A single module capable of reading magnetic stripes, EMV chips, and NFC signals.
• How it works: Depending on how you present your card (swipe, insert, or tap), the same piece of hardware automatically switches modes and reads the correct data type.

Many new ATMs installed by major banks in India, such as State Bank of India (SBI) or HDFC Bank, feature hybrid readers. This allows older customers with magnetic stripe cards to still use the ATM while enabling advanced security for EMV-enabled cards.

How Does ATM Card Reader Work?

Card Presentation:

• Swiping or Inserting: If your card has a magnetic stripe, you swipe it through the designated slot. If it has an EMV chip, you insert it into the chip slot and wait. In some machines, you might be instructed to leave the card inserted until the transaction completes.
• Tapping (for NFC): If the ATM supports contactless, you simply hold your NFC-enabled card near the reader’s symbol for a moment until you hear a beep or see a confirmation light.

Data Capture and Conversion:

• Magnetic Data: As the magnetic stripe passes over a read head, variations in the magnetic field are converted into digital bits (zeros and ones). The ATM’s controller interprets these bits to identify your card number, issuing bank, and sometimes a simple check digit for basic validation.
• Chip Data: When the card is inserted, the ATM activates the chip, supplying a small electric current. The chip then uses its built-in microcontroller to perform encryption routines, creating a secure session key. The ATM reads encrypted data blocks from the chip, which include your account details and a unique transaction code (cryptogram).
• Contactless Data: The NFC chip in the card uses magnetic induction to power itself temporarily and transfer encrypted data. The ATM’s NFC antenna captures this data and decodes it in real time.

PIN Entry and Authentication:

• After reading the card data, the ATM displays a prompt: “Enter PIN.” You key in your Personal Identification Number (PIN) on the ATM keypad. This PIN is encrypted by the ATM’s secure PIN pad module before being sent, along with the card data, to the bank’s payment switch or core banking server.
• The bank’s server checks either the card number matches the correct PIN. If they match, the server sends an “Approved” signal. If not, you get an “Incorrect PIN” message and may get additional attempts, depending on the bank’s policy.

Transaction Processing:

• Once authenticated, you select a transaction type (e.g., cash withdrawal). The ATM sends a request to the bank’s host system over a secure network link (often through India’s National Financial Switch, managed by NPCI). The host system verifies whether you have enough balance, whether the ATM has sufficient cash, and whether any withdrawal limits apply.
• If approved, the host responds with a go-ahead, and the ATM dispenses the cash. Simultaneously, the ATM updates its local journal to record the transaction while the bank’s host updates your account balance in real time.

Card Return and Receipt:

• After dispensing cash (or upon any other transaction like balance inquiry), the ATM prompts you to remove your card. Some machines hold the card until you explicitly confirm you are done, then eject it.
• If you opted for a printed receipt, the ATM prints a small slip showing date, time, transaction type, amount, account balance, and any fees (if applicable).

Uses of ATM Card Reader

Cash Withdrawal:

The most common use. You insert or swipe your card, enter your PIN, and withdraw cash from your savings or current account in Indian rupees. ATMs usually allow withdrawals in multiples of ₹100 or ₹500, depending on the machine and the bank.

Balance Inquiry:

With the card reader authenticating your identity, you can check your account balance instantly. Many customers in India rely on this feature to confirm whether their salary or pension credit has arrived.

Fund Transfer (NEFT/IMPS/RTGS):

Modern ATMs in India may offer simple fund transfer options, especially between your own accounts or to previously saved beneficiaries. After reading your card and PIN, the ATM can guide you through transferring funds. Transaction limits vary by bank.

Mini Statement / Passbook Update:

Some ATMs can print a mini statement showing the last 5–10 transactions. Others have a passbook printing module. In these cases, the ATM card reader authenticates you before allowing the machine’s printer to update your passbook or produce a mini statement.

PIN Change / PIN Regeneration:

If you forget your PIN or want to change it for security reasons, you can do so at an ATM. After reading your card and verifying your identity, the ATM lets you set a new PIN. For first-time EMV cards, many banks require you to set or activate the PIN at the ATM before using the card elsewhere.

Cash Deposit:

In India, a growing number of ATMs now support cash deposits. You insert your card so the machine can identify your account, then feed the currency notes into a special deposit slot. The ATM’s card reader confirms your account, and the machine verifies and counts the deposited notes before crediting the funds often instantly, though some banks may take a few hours.

Other Services:

Bill Payments: You can pay utility bills (electricity, water, mobile recharge) via many bank ATMs. The card reader ensures that the payment comes from your authenticated account.

Cheque Book Request: Certain ATMs allow you to request a new cheque book by reading your card data and verifying your identity. The cheque book is then delivered to your registered address.

Prepaid Card Top-Up: If you have a prepaid travel or shopping card linked to your bank, the ATM can read your main account card and load money onto the prepaid card in one transaction.

Features of ATM Card Reader

Security and Anti-Skimming Protections:

• EMV Compliance: By reading the EMV chip, the card reader generates a unique cryptographic code for each transaction, making it extremely difficult for fraudsters to clone cards. In India, RBI guidelines mandate EMV, reducing counterfeit card fraud sharply.
• Anti-Skimming Technology: Many modern readers include an anti-skimming module that prevents devices from secretly copying card information. These modules use jamming or detection sensors to block unauthorized “skimming” attachments.
• Encryption: The data read from the card (mag stripe or chip) is encrypted immediately within the reader before it enters the ATM’s main processing unit. This prevents attackers from intercepting unencrypted card data.

Multi-Format Compatibility:

• Magnetic Stripe + EMV + NFC: A good ATM card reader in India supports all three technologies. This flexibility ensures that customers with older magnetic stripe cards, newer EMV chip cards, or even contactless NFC cards can all use the same machine.
• Global Card Support: Since many Indians travel abroad and hold international cards (like Visa, MasterCard, RuPay, Maestro), ATM readers are built to decode multiple card standards so that both domestic and foreign cards work seamlessly.

Durability and Reliability:

• Heavy-Duty Build: An ATM card reader is designed to handle thousands of insertions and removals each month without failure. The internal parts are often made of reinforced plastics or hardened metal to withstand wear and tear.
• Temperature and Dust Resistance: India’s climate can be hot and dusty, especially in non-air-conditioned outdoor ATMs. Modern card readers use sealed components to prevent dust and humidity from affecting their performance.

Fast Data Transfer:

• Quick Read Latency: A good card reader processes the magnetic stripe or chip data in a fraction of a second. This speed ensures that customers do not have to wait long between inserting/swiping their card and seeing the next prompt on the screen.
• Optimized Firmware: The reader’s firmware is tuned to the bank’s network protocols (for instance, NPCI’s National Financial Switch messaging in India), reducing any delays in sending card data to the host server.

Error Detection and Feedback:

• Read-Error Notifications: If the magnetic stripe is damaged or if the chip is scratched, the ATM card reader instantly detects read errors and prompts the user to “Remove and Reinsert” or “Swipe Again.”
• Card Retention Mechanism: If the card appears tampered with or if the user enters the wrong PIN repeatedly (usually three times), the ATM’s reader can retain the card and notify the bank automatically. This helps prevent fraud and card misuse.

Compliance with Indian Banking Standards:

• RBI Mandates: The Reserve Bank of India requires all new cards to be EMV-compliant. Thus, ATM card readers in India adhere to PCI (Payment Card Industry) standards and RBI security guidelines.
• RuPay & Domestic Network Compatibility: To support RuPay cards (India’s domestic card scheme promoted by NPCI), many readers are certified to work with RuPay as well as international networks like Visa or MasterCard.
• Language Support: Some ATM card readers work in parallel with the ATM software to prompt customers in multiple Indian languages (Hindi, English, regional languages). Once the reader verifies the card, the ATM may switch its display to a preferred language set by the customer’s bank or based on the card’s issuing region.

User-Friendly Design:

• Clear Slot Markings: In India, where literacy levels and ATM familiarity vary, card slots often have pictorial guides (e.g., an arrow showing which way to insert). The reader module includes these icons to reduce human error.
• Audible Beeps and Lights: When the card is properly read, the ATM may beep once and show a green light. If there is an error, it may beep twice with a red light. This immediate feedback helps users understand what is happening especially useful for first-time or infrequent ATM users.
