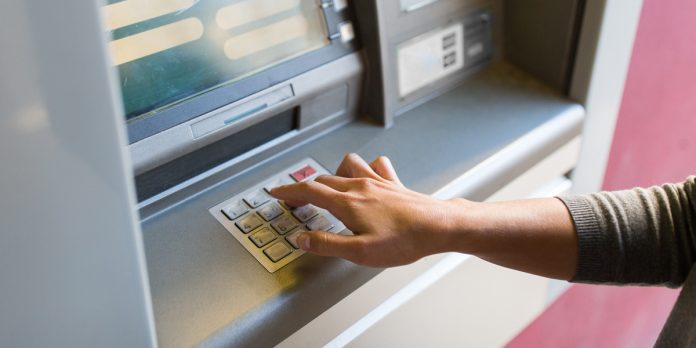

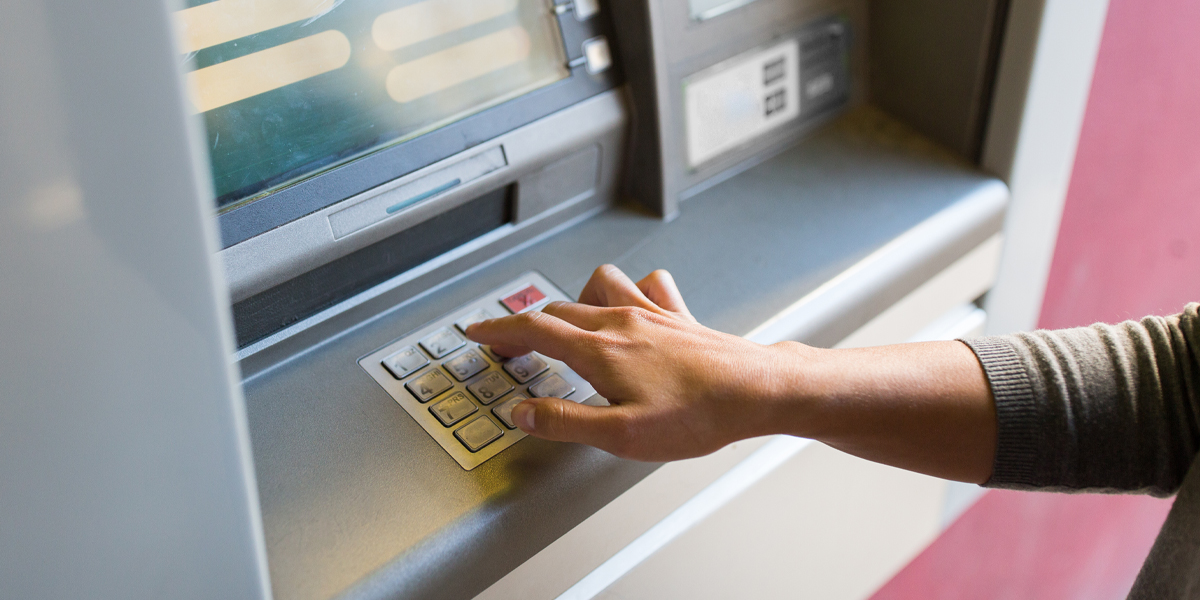

What is ATM Keypad?
An ATM keypad is the set of keys or buttons that you press to interact with an Automated Teller Machine (ATM). It is typically mounted on the front panel of the ATM, below the screen or display. Through the keypad, customers enter their Personal Identification Number (PIN), select transaction options (such as withdrawal, balance inquiry, or deposit), and input numerical values (for example, the amount they wish to withdraw). The ATM keypad plays a crucial role in ensuring secure, accurate, and user-friendly access to banking services. In India, where millions rely on ATMs for daily cash needs, the keypad must be robust, reliable, and easy to use for people of different ages and backgrounds.
How Does ATM Keypad Work?
Physical Key Press:
- When you press a key, a mechanical or electrical switch beneath that key closes. This switch generates an electronic signal corresponding to the particular number or function (e.g., “Enter,” “Cancel,” or “Clear”).
- In many modern ATMs, the keypad also contains a thin, flexible membrane layer that sends the signal whenever pressure is applied. Older or more rugged models may use mechanical switches under each key.
Encryption and Security:
- To protect your PIN and other sensitive information, the keypad is often designed as an Encrypted PIN Pad (EPP). The moment you press a digit, the keypad’s internal electronics convert it into an encrypted code.
- This encrypted code is then sent directly to a secure processing unit inside the ATM. At no point does the keypad transmit your PIN as plain text. In India, Reserve Bank of India (RBI) guidelines mandate that all PIN data must be encrypted end-to-end to prevent fraud.
Communication with ATM Controller:
- Once the keypad encrypts the keypress, it communicates with the ATM’s central controller or host computer. This controller verifies whether the entered PIN matches the encrypted record stored by your bank.
- If the authentication succeeds, the ATM prompts you to choose a transaction type (withdrawal, balance inquiry, etc.) and enter further numerical data (for instance, the amount to withdraw). Each of these entries goes through the same secure keypad-to-controller path.
Feedback to User:
- As you press keys, the ATM often gives you visual or auditory feedback. For example, the screen may display a masked character (like “*”) for each PIN digit or show the exact number you type for amounts and menu choices.
- In some models, you may also hear a soft beep for each keypress. This feedback reassures users that the ATM has registered their input correctly.
By encrypting data at the point of entry and communicating securely with the bank’s server, the ATM keypad ensures confidentiality, integrity, and correct transaction processing in real time.
Features of ATM Keypad
ATM keypads are designed with multiple features that address security, durability, and ease of use. Below are the most important characteristics:
Encrypted PIN Pad (EPP):
The highest-priority feature is end-to-end encryption. As soon as a customer presses a digit, it is immediately encrypted within the keypad’s secure microcontroller.
This protects the PIN from skimming devices or malicious software that might try to intercept plain-text data.
Tamper-Resistant Design:
Keypads are enclosed in a metal casing with tamper-evident seals or sensors. If someone tries to pry open, drill, or otherwise tamper with the unit, internal circuits detect the manipulation and automatically zeroize (erase) any stored cryptographic keys.
Durability and Weather Resistance:
ATM keypads are built to withstand heavy, daily use often thousands of transactions per day. Keys are usually made of robust plastic or metal that resists wear and tear.
Tactile and Audio Feedback:
Keys are designed to provide a distinct tactile “click” or “snap” so users know the press has registered. This is important for visually impaired customers or those who prefer physical feedback rather than just looking at the screen.
Some ATMs offer a soft beep when each key is pressed. However, audio feedback can often be muted for privacy.
Braille or Raised Dots for Accessibility:
To assist visually impaired customers, many ATM keypads in India include Braille dots or raised bumps on the “5” key. This reference point helps people orient their fingers before typing their PIN or other numbers.
Some models also include headphone jacks that allow audio prompts through earphones, with keypad instructions given in local languages like Hindi, English, or regional dialects.
Backlit Keys:
For use in dimly lit areas or during late evening hours, ATMs often have backlit keypads. Soft LED lighting under each key ensures that printed numbers and symbols remain visible under all lighting conditions.
Anti-Skimming Protections:
Beyond encryption, many keypads incorporate special coatings (such as anti-fingerprint or glare-resistant surfaces) that make it harder for hidden cameras to capture PIN entries.
Some banks install small shields or walled enclosures around keypads, so shoulder-surfing or camera-based fraud becomes more difficult.
By combining these features encryption, tamper-resistance, durability, accessibility, and anti-skimming safeguards ATM keypads maximize both security and convenience for Indian customers.
Functionality of ATM Keypad
An ATM keypad does more than just let you enter numbers. Its primary functionalities include:
PIN Entry:
- The most critical function is to let customers securely enter their four- or six-digit Personal Identification Number (PIN). Once you insert your debit or ATM card, the screen displays a prompt like “Please Enter PIN.” You then press the corresponding digits on the keypad.
- As you type each digit, the display may show a masked character (for example, “*” or “•”) to conceal your PIN from onlookers.
Menu Navigation and Option Selection:
- After authenticating your card and PIN, the ATM presents a menu of transaction options (such as “Cash Withdrawal,” “Balance Inquiry,” “Mini Statement,” or “Deposit”). To choose one, you press the numeric key corresponding to the on-screen option (for instance, pressing “1” for Withdrawal, “2” for Balance Inquiry).
- If there are sub-menus like choosing between savings or checking account again, you select the appropriate number on the keypad.
Amount Input:
- When you choose “Cash Withdrawal,” the ATM asks you to enter the amount you want. The keypad allows you to type the exact numerical value (for example, 1,000 or 5,000 rupees).
- After typing the digits, you press “Enter” to confirm. If you make a mistake, the “Clear” or “Cancel” key helps you erase a wrong digit or start over.
Confirm/Cancel Operations:
- Most ATMs have dedicated “Enter” (often colored green) and “Cancel” (often colored red) keys. Once you finish typing any information either it is PIN, amount, or menu choice you must press the “Enter” key to proceed.
- If you change your mind or make an error, pressing the “Cancel” key aborts the current transaction and returns the ATM to the welcome screen or ejects your card.
Language Selection:
- In bilingual or multilingual ATMs (common in India), the first step is often choosing a language, such as Hindi, English, or a regional language. You select the language by pressing the corresponding number on the keypad.
- This ensures that on-screen instructions appear in your chosen language as you proceed through the transaction.
Special Function Keys:
- Some ATMs include extra keys beyond 0-9, “Enter,” “Clear,” and “Cancel.” For example, there might be a key to switch off or on audio instructions or a function key to request a mini-statement.
Through these functions secure PIN input, menu navigation, numeric entry for amounts, and special controls like Cancel and Enter the ATM keypad enables a wide variety of banking transactions quickly and reliably.
Types of ATM Keypad
ATM keypads can be categorized based on their design, underlying technology, and special security features. Below are the common types you may encounter in India:
Mechanical Switch Keypad:
- This traditional model uses physical switches under each key. When a key is pressed, a metal dome or spring contacts a circuit board, generating a distinct electric signal.
- Mechanical keypads offer strong tactile feedback (you can feel a “click”) and are known for durability. However, they may wear out over many years of heavy use.
Membrane Keypad:
- A membrane keypad consists of a thin, flexible layer or several layers of membrane material. Beneath this membrane, printed conductors register key presses when pressure is applied.
- Because there are no exposed mechanical parts, membrane keypads are water-resistant, dustproof, and easier to clean. They are often quieter, though the tactile feedback can feel softer than mechanical keys.
Encrypted PIN Pad (EPP):
- An Encrypted PIN Pad integrates encryption hardware and firmware directly into the keypad. Each key press is immediately transformed into ciphertext before leaving the keypad module.
- Almost all modern ATMs in India use EPPs to comply with RBI regulations. Early-generation ATMs without dedicated EPPs are gradually being replaced.
Tactile/Durable Polymer Keypad:
- Made from rugged polymer or silicone, these keypads strike a balance between mechanical and membrane designs. They offer good tactile feedback while being resistant to harsh weather, dust, and vandalism.
- The keys are often sealed within a metal frame to prevent water ingress and reduce the chances of tampering.
Touchscreen Keypad (Virtual Keypad):
- In some newer ATMs especially in metro cities physical keypads are replaced or supplemented by touchscreens. On-screen numeric layouts appear, and you simply tap virtual keys.
- While more flexible (the layout can change dynamically), touchscreens may be less reliable in outdoor or dusty environments. Also, they pose unique security risks, such as smudge pattern attacks or unauthorized camera surveillance. In India, pure touchscreen ATMs are less common outside major urban centers.
Braille Keypad for the Visually Impaired:
- Certain ATM models include specially designed keypads with raised Braille dots on crucial keys (especially the “5” key) and often a separate audio jack for headphones.
- These additions help visually impaired customers navigate ATM menus and enter PINs securely. Such accessible keypads align with the Rights of Persons with Disabilities Act in India, ensuring that ATMs serve all segments of society.
By understanding these different types mechanical, membrane, EPP, tactile polymer, touchscreen, and Braille-enabled you can appreciate how ATM operators in India balance cost, durability, security, and accessibility.
Uses of ATM Keypad
While most people associate ATM keypads primarily with cash withdrawals, the reality is that they support a broad range of banking services. In the Indian context, where banks aim to digitalize and extend financial inclusion, these uses include:
Cash Withdrawal:
The most common use: after entering a valid PIN, you select “Withdrawal” and type in the amount you want. The ATM processes your request and dispenses cash from the dispenser module.
In rural or semi-urban Indian ATMs, withdrawal limits and denominations may vary, but the keypad’s role remains unchanged: secure, accurate amount entry.
Balance Inquiry:
Many customers simply want to check their available balance. By pressing the designated menu number (for example, “3” for balance inquiry), the ATM keypad registers that choice.
The screen then displays (and optionally prints) your current balance. This reduces the need to visit a bank branch for basic account information.
Mini-Statement Printing:
At some ATMs, you can request a mini-statement, a summary of your last 5 to 10 transactions. After selecting that option via the keypad, the ATM prints a small receipt detailing recent deposits, withdrawals, and transfers.
This feature is particularly helpful in India’s smaller towns, where passbook update facilities may not be readily available between trips to the bank.
Cash Deposit:
Many Indian ATMs now support cash deposits. After inserting your account-linked debit card and entering your PIN, you choose “Deposit” from the menu.
The keypad then allows you to enter the total value of cash you are depositing. Some advanced machines count the notes automatically and confirm the amount on-screen; older models may ask you to input the amount manually.
Cheque Deposit:
Certain bank ATMs in India accept cheque deposits. The keypad helps you choose “Cheque Deposit” and enter the amount the cheque is made out for (even if the machine scans and reads the cheque’s MICR code).
A deposit slip is generated or a digital acknowledgement is provided once the cheque is successfully captured.
Fund Transfers (within Bank or Interbank):
Nowadays, many ATMs let you transfer money from your account to another account, either within the same bank (intra-bank) or to a different bank (interbank).
Through the keypad, you type the beneficiary account number (and sometimes an IFSC code), the amount to send, and confirm with “Enter.” The funds move instantly, especially if your bank is part of the IMPS (Immediate Payment Service) network.
Mobile Recharge and Bill Payments:
Some ATMs in India integrate bill payment services. After selecting “Bill Payment” on the screen, you choose from a list of billers (electricity, water, mobile telecom). The keypad helps you enter your consumer number or mobile number and the payment amount.
Once confirmed, the ATM deducts the amount from your account and provides a confirmation receipt. This feature helps people in semi-urban or rural areas pay bills without going to a bank branch or cyber café.
PIN Change and Account Settings:
For security reasons, banks encourage customers to change their ATM PIN every few months. With the keypad, you navigate to “PIN Change,” type your current PIN, then enter the new 4 or 6-digit PIN twice for confirmation.
Similarly, certain ATMs allow you to link or unlink mobile numbers, change withdrawal limits, or set preferences for mini-statements, all via keypad-driven menu selections.
Language and Accessibility Options:
In India’s multilingual environment, ATMs provide language choices (English, Hindi, or regional languages). You press the number for your preferred language at the first prompt.
Visually impaired customers can plug in headphones and listen to audio prompts in their chosen language, following instructions keyed in via the tactile or Braille-enabled keypad.
